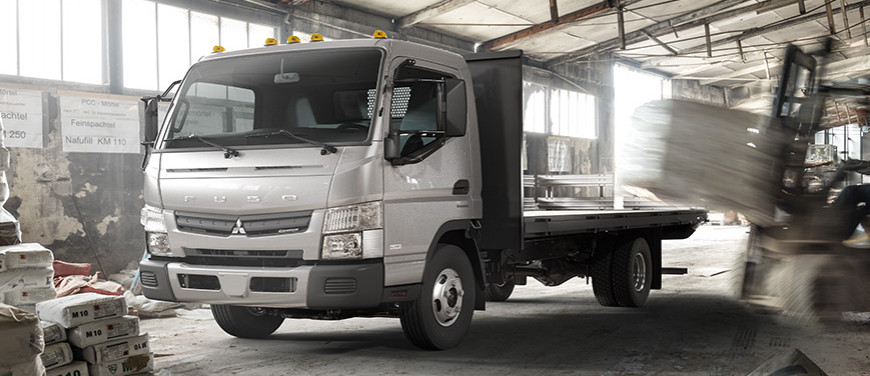

FE130 Diesel
Overview
Rugged and responsive, the FUSO FE130 will change the way you think about keeping your business moving. Featuring an innovative two-stage turbocharged, low-emissions diesel engine and dual-clutch automatic transmission, you’ll benefit from increased fuel savings, enhanced efficiencies, higher payload capacity, and improved driver productivity. Add to this our 5 years/280,000 km (175,000-mile) powertrain limited warranty and you get the longevity and durability you can expect from FUSO.
On the lighter end of our medium-duty lineup, the FE130 is a great choice for appliance and package delivery, office supplies, or air cargo.
Owner Advantages
- On the lighter end of our medium-duty lineup, this is a great choice for appliance and package delivery, office supplies, or air cargo
- Our exclusive DUONIC® dual-clutch automatic transmission offers effortless navigation of city streets and heavy traffic
- Enjoy the long haul in our most comfortable cab ever, fully equipped with an ergonomically designed interior, adjustable steering wheel, and spacious seating and stowage
- From sunrise to sundown, a panoramic windshield and a driver-to-ground line of sight of only 6 ft. ensure you stay focused on what’s ahead
- Go further on less with our ultra-efficient advanced dual-turbo diesel engine with access to high torque whenever it’s needed
- Mobileye®¹ system provides audible and visual alerts for speeding, lane departure, potential pedestrian or vehicle collisions
¹Optional Feature
Appearance
Fabric Style
Blue Cloth (2017 Model) / Black Cloth (2018 Model)
Specifications
Download Spec Sheet
Weight Ratings
GVWR/GCWR
13,200 lb./20,915 lb.
GAWR (front/rear)
5,360 lb./9,880 lb.
Curb Weight
Base model
5,225 lb. (est.)
Body/Payload
Estimated max.
7,975 lb. (see dealer for details)
Dimensions
Wheelbase
110.2" (2,800 mm) (C)133.9" (3,400 mm) (E)151.6" (3,850 mm) (G)169.3" (4,300 mm) (H)
Overall length (cab/chassis)
204.9"228.5"246.3"264.0"
Usable cab to rear axle
81.2"104.9"122.6"140.3"
Min and max body sizes
10' to 20'
Engine
Model
FUSO 4P10-T5 Diesel
Type
DOHC, 4-cylinder, 4-stroke cycle, water-cooled, turbocharged, intercooled diesel with 4 valves per cylinder, with high-efficiency electrically-engaged cooling fan
Displacement
183 cu. in. (3.0 L) Electronically controlled DPF/SCR system with OBD
Max. output (SAE, gross)
161 hp @ 3,400 rpm
Max. torque (SAE, gross)
295 lb.-ft. @ 1,300 rpm
Battery
Type/Capacity
Two 12-volt, maintenance-free/750 CCA
Air Cleaner
Type
Dry paper element with snorkel
Transmission
Standard
M038S6 DUONIC® 6-speed dual-clutch automatic
Axle Capacity
Front/Rear
5,735 lb./9,925 lb.
Final Reduction Gear
Type (rear)
Single-reduction hypoid
Ratio (std./opt.)
4.875/5.285
Top Speed, Est.
Std. diff./Opt. diff.
145/134 km/h (90/83 mph)
Turning Diameter
Minimum, by wheelbase
34.1'40.0'44.6'49.5'
Tires (Premium)
Configuration
Single front, dual rear
Size/Type
215/85R16 10PR: LR:E/All-season all positions
Wheels
Size/Configuration
16" x 6"/5-lug
Steering
Type
Ball-nut type with integral-type hydraulic power boost
Adjustments
Tilt/telescoping steering column with steering lock
Suspension
Front
Laminated leaf springs with shock absorbers and stabilizer bar
Rear
Laminated leaf springs with shock absorbers
Brakes
Service
Dual-caliper discs, vacuum/hydraulic-type with ABS
Parking
Drum/driveline, internal expanding shoe
Exhaust
Electrically actuated
Frame
Type
Ladder/straight
Section modulus
7.08 cu. in. per rail
Yield strength
56,565 psi
RBM per rail
400,410 lb.-in.
Height/Width
32.5"/33.5"
Environmental durability
Premium anti-corrosion package for frame and frame-mounted components
Fuel Tank
Capacity/Location—std.*
30 US gal./in-frame, aft of rear axle
Capacity/Location—opt.**
33 US gal./left side
Def Tank
Capacity/Location
3.2 US gal./right side
Electrical
Starter/Alternator
12-volt/12-volt, 140A output
Cold Weather
Starting/Operation
Ceramic glow plugs/PCV heater, DEF tank heater
Convenience / Assurance
Windows/Door locks
Power-operated, one-touch up and down driver’s side window
Entry
Keyless, with driver/assistant door lock control
Radio
Clarion AM/FM/CD, hands-free Bluetooth® (optional)
Air conditioning
Standard factory-installed
Idle Limit System (ILS)—opt.
Automatic engine shutdown of stationary vehicle, in Park or Neutral, after achieving
normal operating temperature with dealer-programmed limit of 3, 5, or 10 minutes
Cruise control
Standard (programmable)
Collision avoidance system
Mobileye® 6 Series (optional)
- 1Not all customers will qualify for the financing offer. Actual rates, down payment and program eligibility will be determined by Daimler Truck Financial (DTF) or Hitachi Capital Canada (HCC) based upon creditworthiness of the customer. New DTF or HCC credit customers must be approved by December 31, 2018 with the transaction funded by January 15, 2019. See your DTF or HCC representative for complete details.
- 2Fuel tests based on third-party testing.
- *rear fuel tank is not designed for use as a primary or auxiliary in any dual tank system
- **133.9", 151.6", 169.3" wb
